AZ-700 Study Guide – Aktualisierte Fragen für Microsoft Azure Network Engineers online [2022]

1. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.

You configure the application gateway to direct traffic to the URL of the application gateway.

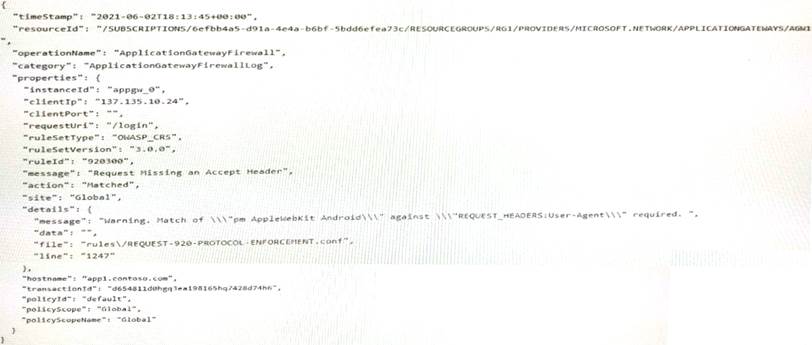

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.





You need to ensure that the URL is accessible through the application gateway.

Solution: You add a rewrite rule for the host header.

Does this meet the goal?

2. Topic 3, Mix Questions



You have 10 Azure App Service instances. Each instance hosts the same web app. Each instance is in a different Azure region.

You need to configure Azure Traffic Manager to direct users to the instance that has the lowest latency.

Which routing method should you use?

3. HOTSPOT

Your company has an Azure virtual network named Vnet1 that uses an IP address space of 192.168.0.0/20. Vnet1 contains a subnet named Subnet1 that uses an IP address space of 192.168.0.0/24.

You create an IPv6 address range to Vnet1 by using a CIDR suffix of /48.

You need to enable the virtual machines on Subnet1 to communicate with each other by using IPv6 addresses assigned by the company. The solution must minimize the number of additional IPv4 addresses.

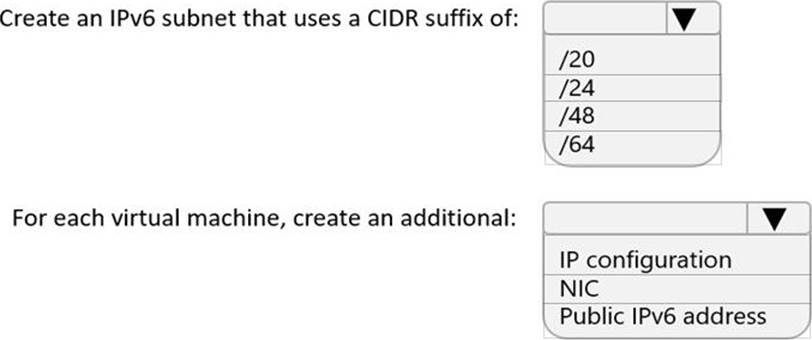

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

4. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.

You configure the application gateway to direct traffic to the URL of the application gateway.

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.





You need to ensure that the URL is accessible through the application gateway.

Solution: You disable the WAF rule that has a ruleld of 920300.

Does this meet the goal?

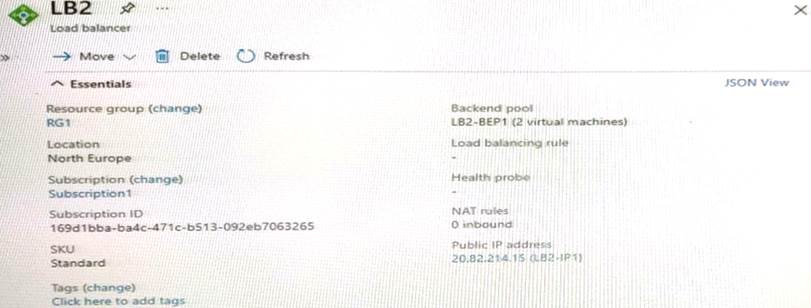

5. You have the Azure load balancer shown in the Load Balancer exhibit.

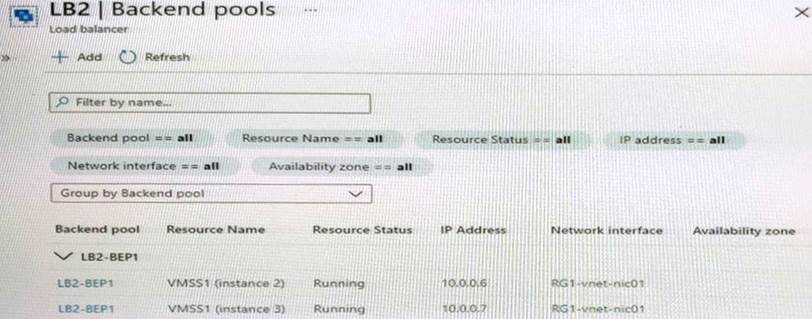

LB2 has the backend pools shown in the Backend Pools exhibit.





You need to ensure that LB2 distributes traffic to all the members of VMSS1.

What should you do?

6. You have an application named App1 that listens for incoming requests on a preconfigured group of 50 TCP ports and UDP ports.

You install App1 on 10 Azure virtual machines.

You need to implement load balancing for App1 across all the virtual machines. The solution must minimize the number of load balancing rules.

What should you include in the solution?

7. 1.Topic 1, Litware. Inc Case Study 1



Overview

Litware. Inc. is a financial company that has a main datacenter in Boston and 20 branch offices across the United States. Users have Android, iOS, and Windows 10 devices.



Existing Environment:

Hybrid Environment

The on-prernises network contains an Active Directory forest named litwareinc.com that syncs to an Azure Active Directory (Azure AD) tenant named litwareinc.com by usinq Azure AD Connect.

All the offices connect to a virtual network named Vnetl by using a Site-to-Site VPN connection.



Azure Environment

Litware has an Azure subscription named Sub1 that is linked to the litwareinc.com Azure AD tenant.

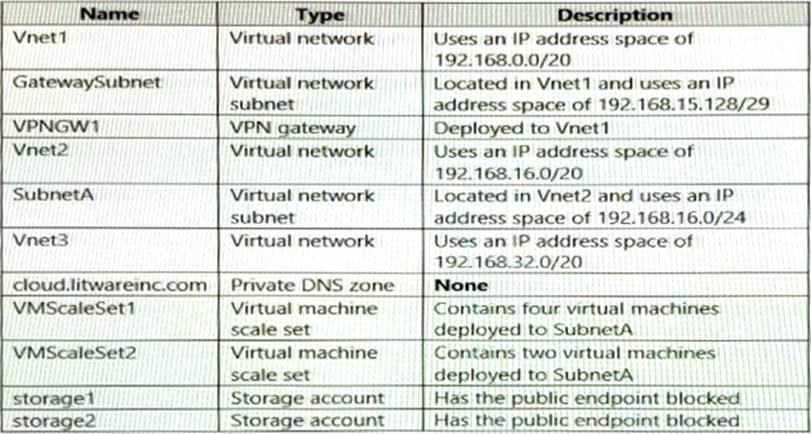

Sub1 contains resources in the East US Azure region as shown in the following table.







There is bidirectional peering between Vnet1 and Vnet2. There is bidirectional peering between Vnet1 and Vnet3. Currently, Vnet2 and Vnet3 cannot communicate directly.



Requirements:

Business Requirements

Litware wants to minimize costs whenever possible, as long as all other requirements are met.



Virtual Networking Requirements

Litware identifies the following virtual networking requirements:

* Direct the default route of 0.0.0.0/0 on Vnet2 and Vnet3 to the Boston datacenter over an ExpressRoute circuit.

* Ensure that the records in the cloud.litwareinc.com zone can be resolved from the on-premises locations.

* Automatically register the DNS names of Azure virtual machines to the cloud.litwareinc.com zone.

* Minimize the size of the subnets allocated to platform-managed services.

* Allow traffic from VMScaleSet1 to VMScaleSet2 on the TCP port 443 only.



Hybrid Networking Requirements

Litware identifies the following hybrid networking requirements:

* Users must be able to connect to Vnet1 by using a Point-to-Site (P2S) VPN when working remotely. Connections must be authenticated by Azure AD.

* Latency of the traffic between the Boston datacenter and all the virtual networks must be minimized.

* The Boston datacenter must connect to the Azure virtual networks by using an ExpressRoute FastPath connection.

* Traffic between Vnet2 and Vnet3 must be routed through Vnet1.



PaaS Networking Requirements

Litware identifies the following networking requirements for platform as a service (PaaS):

* The storage1 account must be accessible from all on-premises locations without exposing the public endpoint of storage1.

* The storage2 account must be accessible from Vnet2 and Vnet3 without exposing the public endpoint of storage2.



DRAG DROP

You need to prepare Vnet1 for the deployment of an ExpressRoute gateway. The solution must meet the hybrid connectivity requirements and the business requirements.

Which three actions should you perform in sequence for Vnet1? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

8. HOTSPOT

You need to meet the network security requirements for the NSG flow logs.

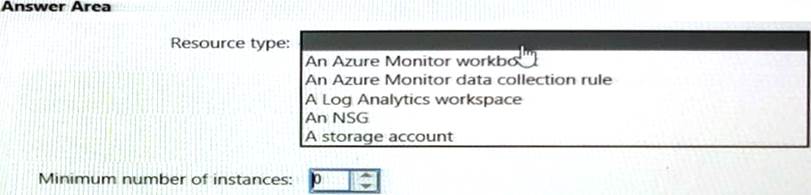

Which type of resource do you need, and how many instances should you create? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

9. HOTSPOT

You need to implement a P2S VPN for the users in the branch office. The solution must meet the hybrid networking requirements.

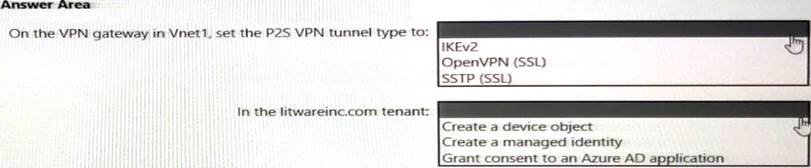

What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

10. HOTSPOT

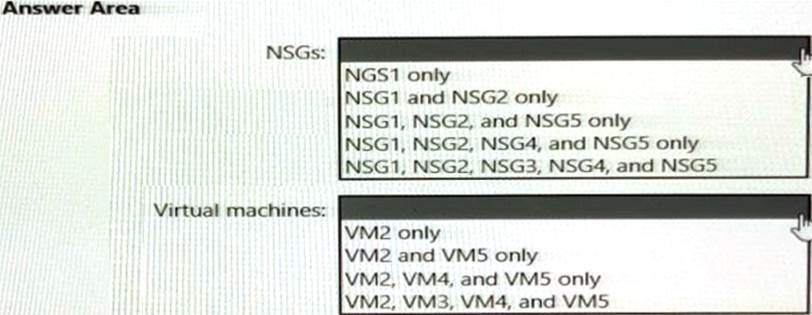

In which NSGs can you use ASG1 and to which virtual machine network interfaces can you associate ASG1? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

11. DRAG DROP

You have two Azure virtual networks named Hub1 and Spoke1. Hub1 connects to an on-premises network by using a Site-to-Site VPN connection.

You are implementing peering between Hub1 and Spoke1.

You need to ensure that a virtual machine connected to Spoke1 can connect to the on-premises network through Hub1.

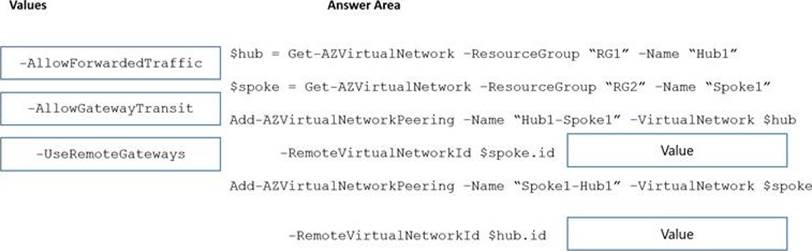

How should you complete the PowerShell script? To answer, drag the appropriate values to the correct targets. Each value may be used once, more than once, or not at all. You may need to drag the split bar between panes or scroll to view content. NOTE: Each correct selection is worth one point.

12. Note: This question is part of a series of questions that present the same scenario. Each question in the series contains a unique solution that might meet the stated goals. Some question sets might have more than one correct solution, while others might not have a correct solution.

After you answer a question in this section, you will NOT be able to return to it. As a result, these questions will not appear in the review screen.

You have an Azure application gateway that has Azure Web Application Firewall (WAF) enabled.

You configure the application gateway to direct traffic to the URL of the application gateway.

You attempt to access the URL and receive an HTTP 403 error. You view the diagnostics log and discover the following error.





You need to ensure that the URL is accessible through the application gateway.

Solution: You create a WAF policy exclusion for request headers that contain 137.135.10.24.

Does this meet the goal?

13. DRAG DROP

You have three on-premises sites. Each site has a third-party VPN device.

You have an Azure virtual WAN named VWAN1 that has a hub named Hub1. Hub1 connects two of the three on-premises sites by using a Site-to-Site VPN connection.

You need to connect the third site to the other two sites by using Hub1.

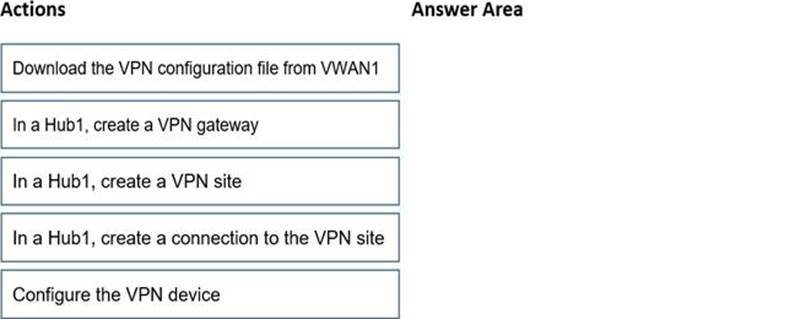

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
